M-LIGHTZ

M-LIGHTZ

Enquery Now
Call for price
SKU: SL900, SL910

Description

With its smaller size, 45 degree beam angle and durable
construction, the M-Lightz is the perfect downlight for feature
lighting inside, or exterior use under soffi ts, for deck lighting in
coastal locations, and general lighting in marine applications.
Available in Constant Current (SL900) or Constant Voltage (SL910).

insulation coverable

[container class=”ps-container”][column type=”1/2″][image type=”rounded” src=”/wp-content/uploads/2018/05/insulation-coverable-SL900.jpg” alt=”Q4-12V-20W-IP20″]SL900[/column][column type=”1/2″ last=”true”][image type=”rounded” src=”/wp-content/uploads/2018/05/insulation-coverable-SL910.jpg” alt=”Q4-12V-20W-IP20″]SL910[/column][/container]

  • INSULATION SAFE
    • Insulation safely wraps over luminaires – tested and approved.
  • NO HEAT LOSS
    • Sealed design stops chimney effect causing heat loss from the
      room – plus stops insects entering from the ceiling.

dimensions

[image style=”margin:0;” type=”thumbnail” src=”/wp-content/uploads/2018/05/M-LIGHTZ-Dimension.jpg” alt=”M-LIGHTZ-Dimension”]

Additional information

Type

Recessed downlight
Power supply

SL900: Constant current 500mA Dimmable (natural, black and white version with driver included) 350mA Non-dimming (316 SS version with driver included) SL910: Constant voltage inbuilt driver (operates from 11-30VDC) – requires 12 or 24VDC input (constant voltage). Ordered separately* .
Beam angle

45°, 38°, 22°
Colour temp

3000K
CRI/R9

SL900: 90+CRI / > 50R9 SL910: 80+CRI
Trim colours

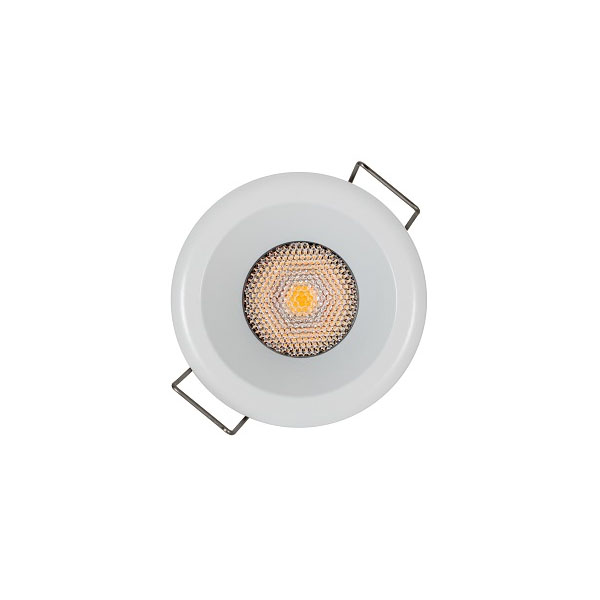

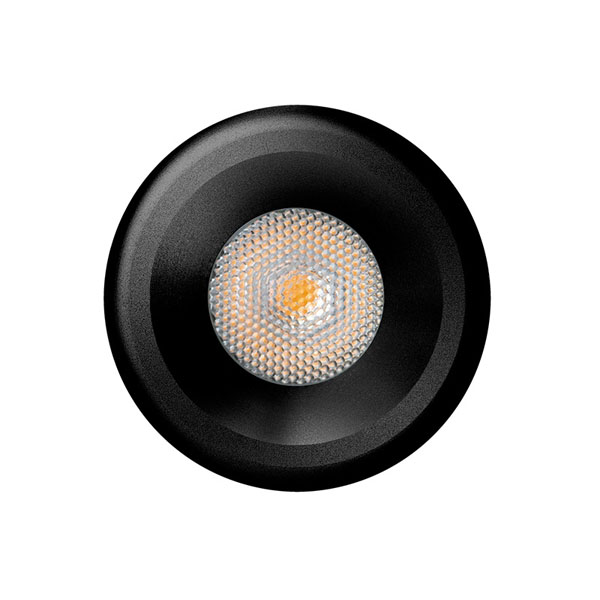

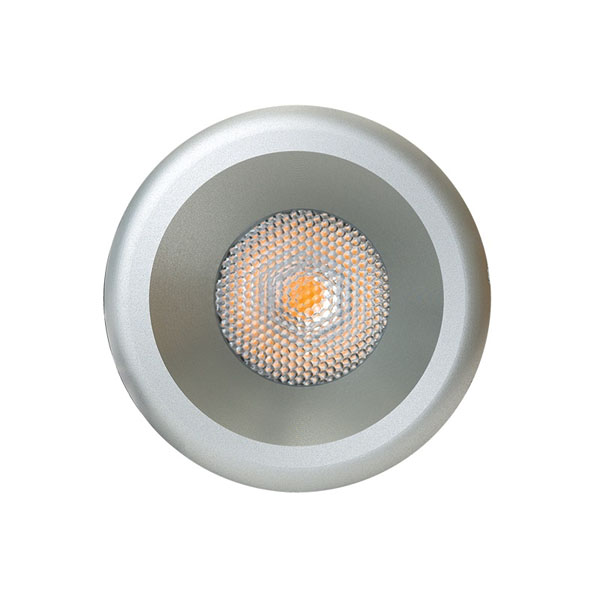

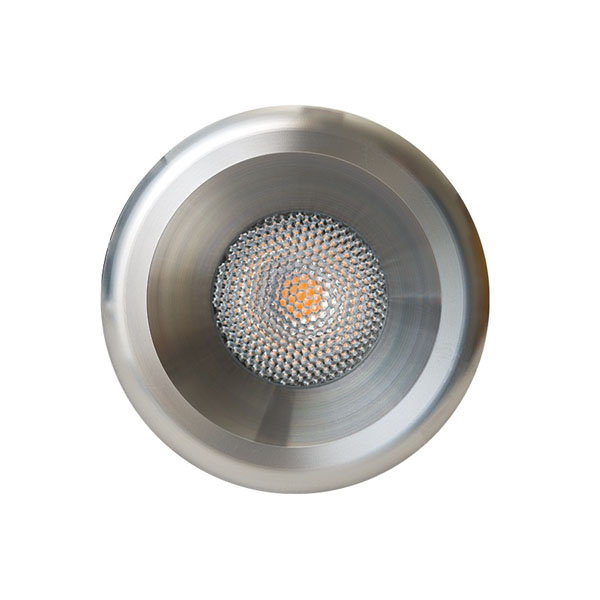

White / Natural / Black / 316 SS
Delivered Lumens*

370Lm (White, Natural and Black) 270Lm (316 SS)
Diffuser type

Prismatic Lens
IP rating

IP67 – NB: White models suitable for internal use only.
Insulation coverable luminare

Yes, IC-F & IC-4
Dimensions

54mm x 33mm deep
Min hole depth

40mm
Cutout

44-46mm
Dimming

SL900: Yes, SL500D White, Natural and Black models No, Mini 350mA driver (SS model) SL910: No
Luminaire power

SL900: 5W 3.5W (SS) SL910: 4.2W 3.6W (SS)
Expected life (L70,TM21)

SL900: Up to 50,000 hours SL910: Up to 50,000 hours
Replaces

25W halogen with equal or better result
HCB & SCB

0mm (Natural & Black)
SL500D Dimmable Driver is compatible with:

SL900: • Clipsal 32E450TM, 32E450UDM, 32E2PUDM • PDL 624M, 654M, 654PBM, 824M, 854M • 316 Stainless Steel SL910: SL910 M-Lightz require a power supply with 12VDC or 24VDC output. Ordered separately. Please refer online for cable size requirements (voltage drop) 1-3 lights in parallel = Q4-12V20W (IP20 rated power supply). 4-6 lights in parallel = Q2-12V36W (IP67 rated power supply)
