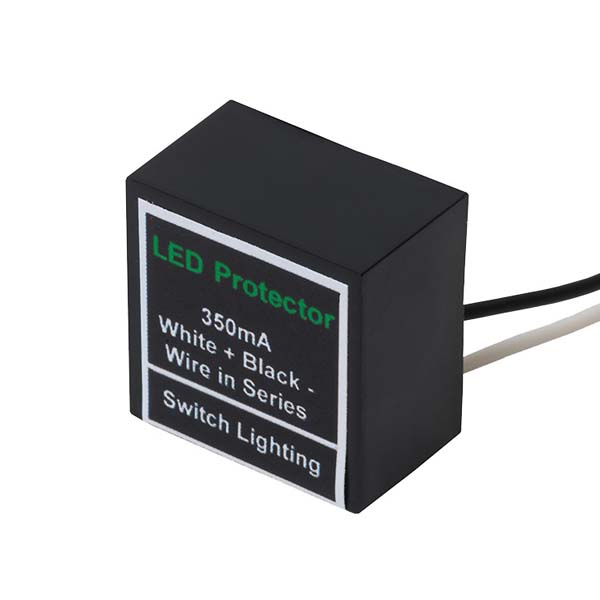

LED Protector

LED Protector

SKU: L05420-1

Description

[container class=”full-width”][column type=”1/2″]

Ultra Fast, Resettable, Series Connected Electronic Fuse

Protect your investment in LED lighting into the future with Switch
Lighting’s LED Protector
The LED protector protects your LED lights from wiring and power
failure hazards that can result from:

  • Environmental hazards (e.g. fl ooding, exposure to corrosive
    environments (salt air) or humidity).
  • Wiring damage (e.g. corrosion, fatigue, accidental or animal activity).
  • Improper power supply (e.g. over current, power surges or dips).
  • Defective workmanship and improper installation.

[/column]
[column type=”1/2″ last=”true”]

LED protectors

  • Protect individual constant current circuits up to 350mA or up to 700mA
  • Detect a problem in less than 2 millionths of a second and trip to protect your LEDs
  • Have a warning light to indicate a problem has been detected.
  • Are easily reset by simply cycling the power once the problem is corrected.
  • Can be installed anywhere in a constant current circuit to protect all LEDs in that circuit.

[/column][/container]

how to specify

Product Model
350mA LED Protector SLP350
750mA LED Protector SLP700

Additional information

Protector

SLP350 SLP700

Maximum Forward Voltage

60V 60V

Maximum Reverse Voltage

60V 60V

Normal LED operating current

350mA 700mA

Over Current Trip Threshold

< 550mA < 900mA

Time to trip during fast surge

< 0.5 micro sec <0.5 micro sec

Typical fault energy per 3V LED during surge

< 10 micro Joules s < 10 micro Joules

Power dissipated during normal operation

< 0.45W < 0.9W

Trip fault indicator

RED LED RED LED

Max. fault current once tripped (@60V)

15mA 15mA

Driver to Luminaire connection

Tinned wire Tinned wire

Size

25 x 25 x 15mm 25 x 25 x 15mm

IP Rating

IP64 IP64
