D-LIGHTZ Deep Tilt Ultra Low Glare

Description

The D-Lightz deep tilt is an architectural downlight with minimal trim and
a 15 degree tilt for general lighting applications. The SLDL122T is an Ultra
Low Glare downlight that reduces eye strain and creates a more relaxed
atmosphere. Switch Lighting Pure Colour downlights render rich natural
colours that enhance skin, surfaces and textiles to provide excellent visual
clarity in every environment. Available in the Professional Series with
90+CRI, Art Series with 97 CRI, or with sunset dimming where excellent
mood lighting is a priority. D-Lightz are also available in a range of lumen
outputs for perfect lighting in a wide range of applications.

INSULATION SAFE
- Insulation safely wraps over luminaire and driver – tested and approved.
NO HEAT LOSS
- Insulation safely wraps over luminaire and driver – tested and approved.
SCB & HCB = 0
- Insulation safely wraps over luminaire and driver – tested and approved.
DIMMABLE DRIVERStandard dimming with earth terminal and surge protection MOV COMPATIBLE WITH:
- Clipsal 32E450TM, 32E450UDM, 32E2PUDM, 32ELEDM
- PDL 624M, 634LM, 654M, 654PBM, 824M, 854M, 354RDMLED-VW, 354PBDMUN-VW
- Legrand/HPM, EM400TR
- Legrand EM400A3P
- Kiwi Dimmer: K005U
- Home DL Dimmer: HLDIM-ECL

dimensions

[image type=”thumbnail” src=”/wp-content/uploads/2018/05/D-Lightz-Deep-Tilt-Ultra-Low-Glare.jpg” alt=”LCAI-–-Dali-Driver-Dimensions”]

Additional information

Type	Professional: Gimbal Recessed Downlight Art: Gimbal Recessed Downlight Professional w/ Sunset Dimming: Gimbal Recessed Downlight
Beam angle	Professional: 60°, 40°, 20° Art: 60°, 40°, 20° Professional w/ Sunset Dimming: 60°, 40°
Colour temp	Professional: 2700K, 3000K, 4000K Art: 2700K, 3000K, 4000K Professional w/ Sunset Dimming: Full power = 3000K Dimmed Power = 2200K
CRI/R9	Professional: 90+CRI / R9 > 50 Art: 97 CRI / R9 = 90 Professional w/ Sunset Dimming: 90+CRI / R9 > 50

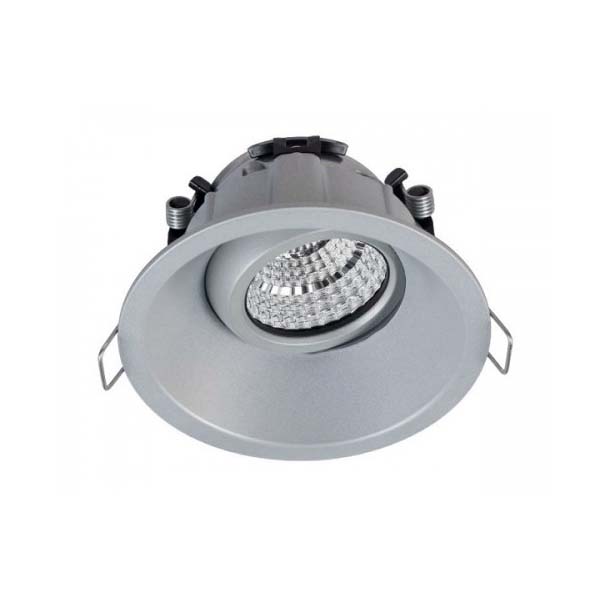

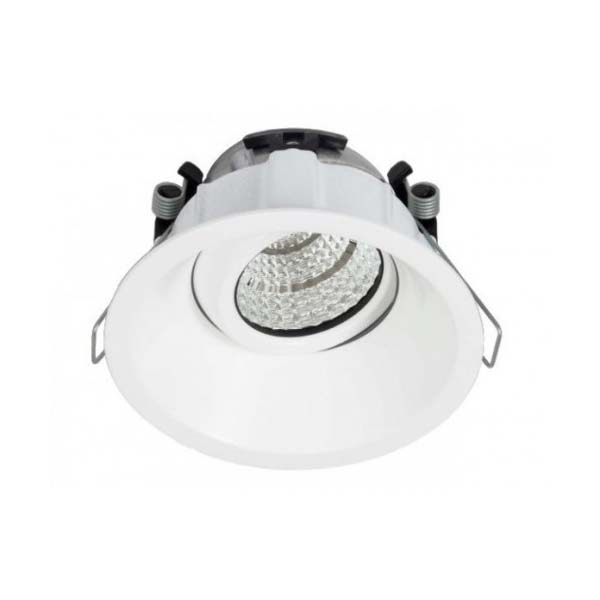

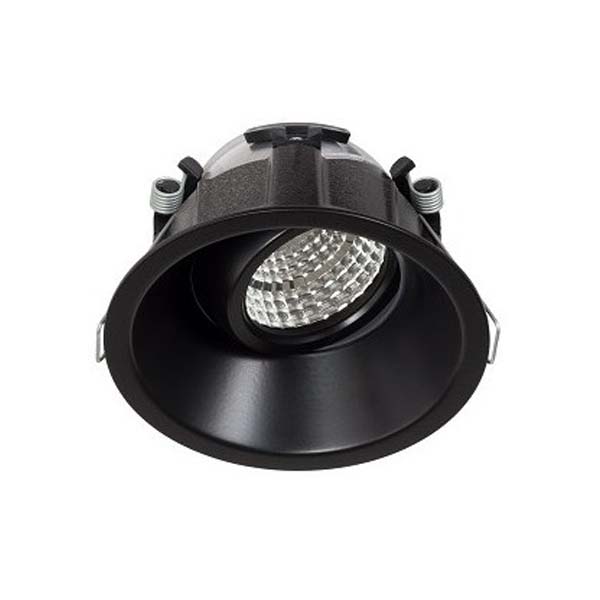

Trim colours	White, Silver, Black
Diffuser type	Clear Glass
ULG	UGR<19
IP rating	IP65 (front face)
Dimensions	101mm x 67mm
Min hole depth	72mm
Cutout	92mm
Dimming	Yes, phase cut dimming as standard
Driver covered	Yes, SL152D, SL222D and SL302D
PF	0.95
Expected life (L70, TM21)	Professional: Up to 60,000 hours Art: Up to 60,000 hours Professional w/ Sunset Dimming: Up to 50,000 hours
HCB & SCB	0mm clearance to normally fl ammable building elements
Delivered Lumens*	Professional: Driver – SL152D (150mA) – 520 Lumen Driver – SL222D (220mA) – 730 Lumen Driver – SL302D (300mA) – 960 Lumen Art: Driver – SL152D (150mA) – 460 Lumen Driver – SL222D (220mA) – 670 Lumen Driver – SL302D (300mA) – 870 Lumen Professional w/ Sunset Dimming: Driver – SL152D (150mA) – N/A Driver – SL222D (220mA) – 600 Lumen Driver – SL302D (300mA) – N/A
Luminaire power	Professional: Driver – SL152D (150mA) – 5.5W Driver – SL222D (220mA) – 7.9W Driver – SL302D (300mA) – 11.5W Art: Driver – SL152D (150mA) – 5.5W Driver – SL222D (220mA) – 7.9W Driver – SL302D (300mA) – 11.5W Professional w/ Sunset Dimming: Driver – SL152D (150mA) – N/A Driver – SL222D (220mA) – 8W Driver – SL302D (300mA) – N/A
System power	Professional: Driver – SL152D (150mA) – 6.8W Driver – SL222D (220mA) – 9.2W Driver – SL302D (300mA) – 13.2W Art: Driver – SL152D (150mA) – 6.8W Driver – SL222D (220mA) – 9.2W Driver – SL302D (300mA) – 13.2W Professional w/ Sunset Dimming: Driver – SL152D (150mA) – N/A Driver – SL222D (220mA) – 9.6W Driver – SL302D (300mA) – N/A
Efficacy	Professional: Driver – SL152D (150mA) – 76.5 Lm/W Driver – SL222D (220mA) – 79.3 Lm/W Driver – SL302D (300mA) – 72.7 Lm/W Art: Driver – SL152D (150mA) – 67.6 Lm/W Driver – SL222D (220mA) – 72.8 Lm/W Driver – SL302D (300mA) – 65.9 Lm/W Professional w/ Sunset Dimming: Driver – SL152D (150mA) – N/A Driver – SL222D (220mA) – 62.5 Lm/W Driver – SL302D (300mA) – N/A
Insulation coverable luminare	Professional: Driver – SL152D (150mA) – Yes, IC-F & IC-4 Driver – SL222D (220mA) – Yes, IC-F & IC-4 Driver – SL302D (300mA) – NZ: CA135, AU: Do not cover Art: Driver – SL152D (150mA) – Yes, IC-F & IC-4 Driver – SL222D (220mA) – Yes, IC-F & IC-4 Driver – SL302D (300mA) – NZ: CA135, AU: Do not cover Professional w/ Sunset Dimming: Driver – SL152D (150mA) – N/A Driver – SL222D (220mA) – Yes, IC-F & IC-4 Driver – SL302D (300mA) – N/A
Replaces	Professional: Driver – SL152D (150mA) – 35W halogen with equal or better result Driver – SL222D (220mA) – 50W halogen with equal or better result Driver – SL302D (300mA) – 70W halogen with equal or better result Art: Driver – SL152D (150mA) – 35W halogen with equal or better result Driver – SL222D (220mA) – 50W halogen with equal or better result Driver – SL302D (300mA) – 70W halogen with equal or better result Professional w/ Sunset Dimming: Driver – SL152D (150mA) – N/A Driver – SL222D (220mA) – 50W halogen with equal or better result Driver – SL302D (300mA) – N/A
Warranty	7 year warranty on luminaire 5 year warranty on driver N/A
