Description

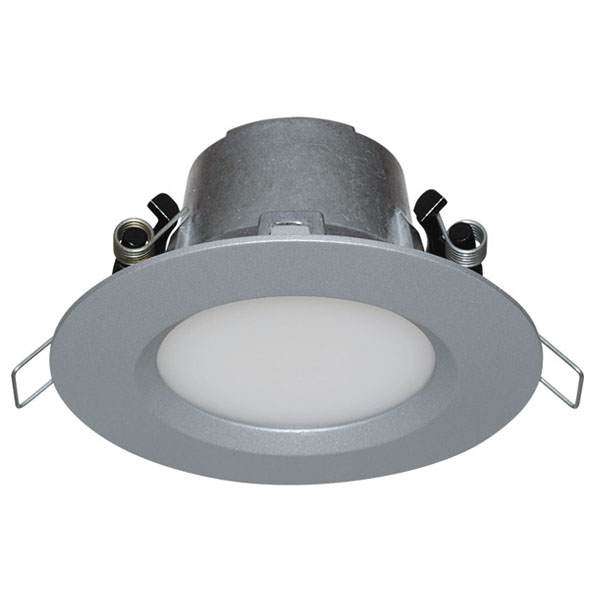

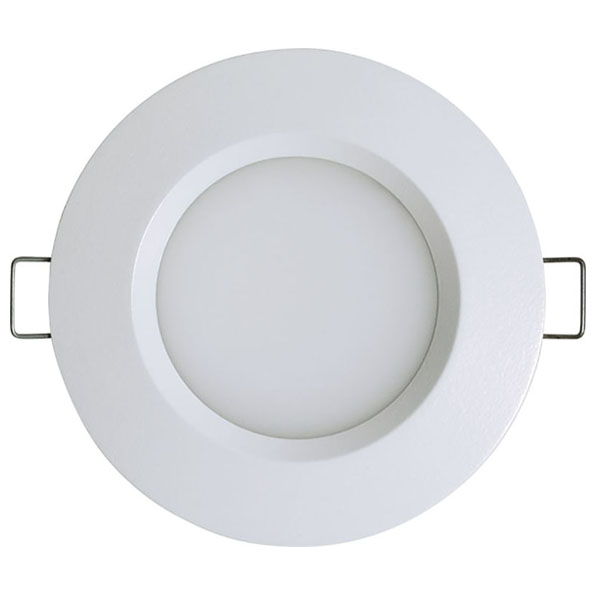

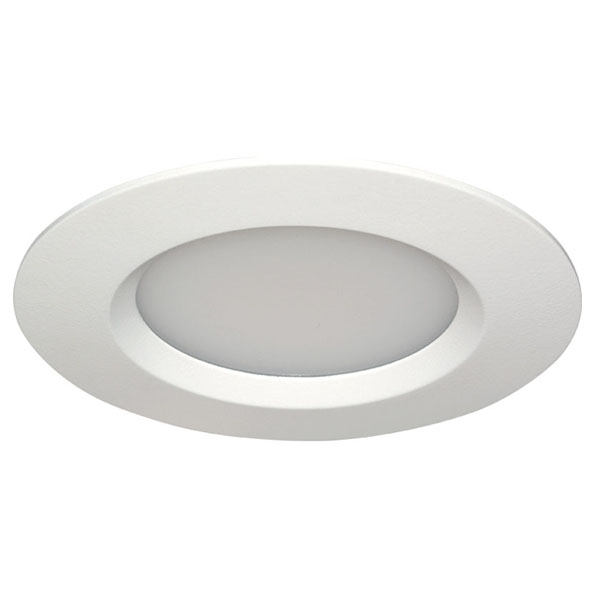

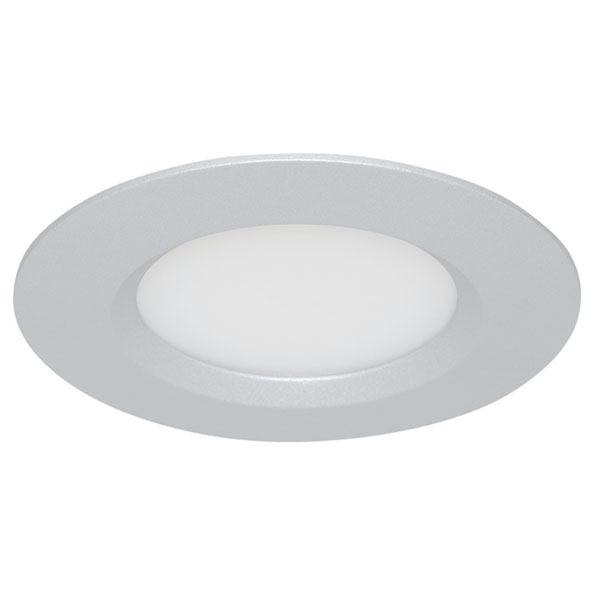

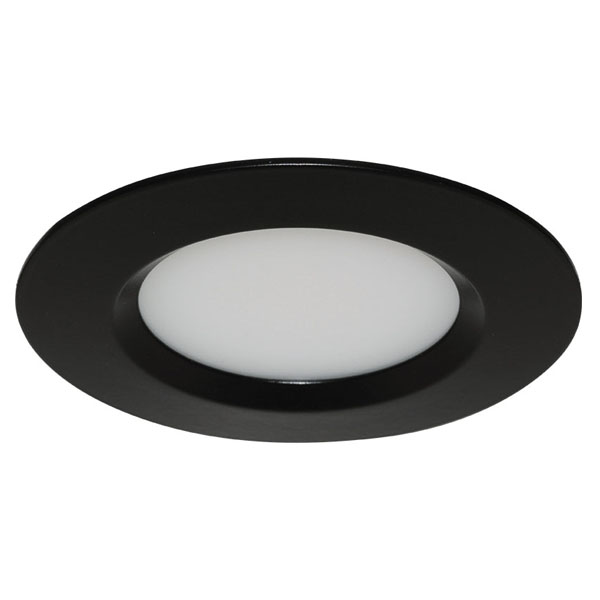

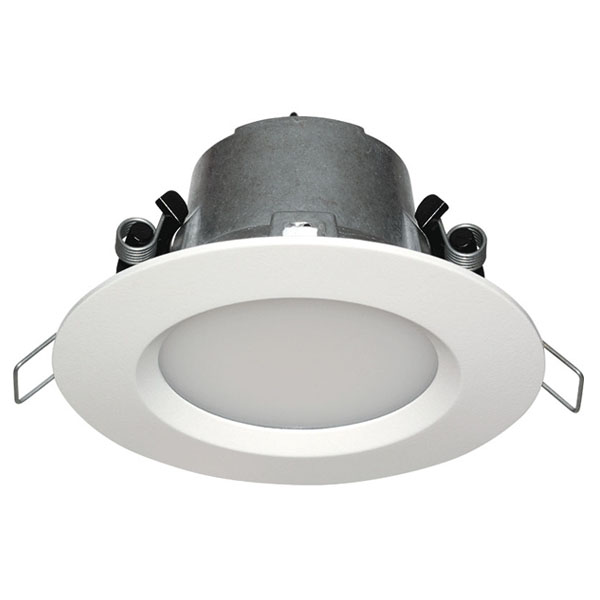

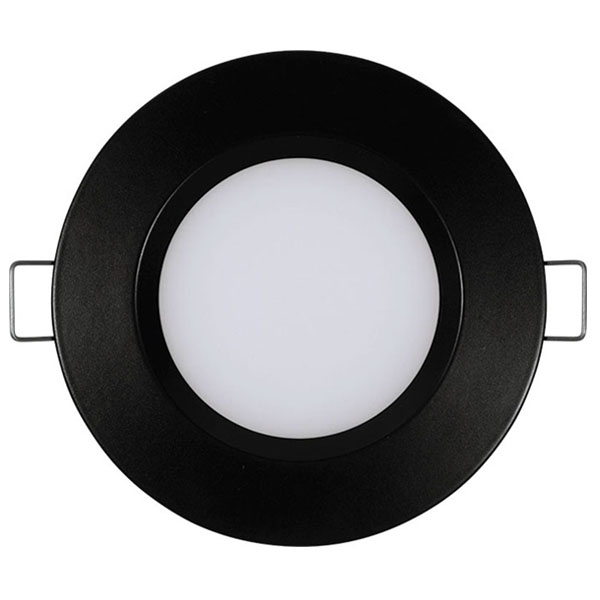

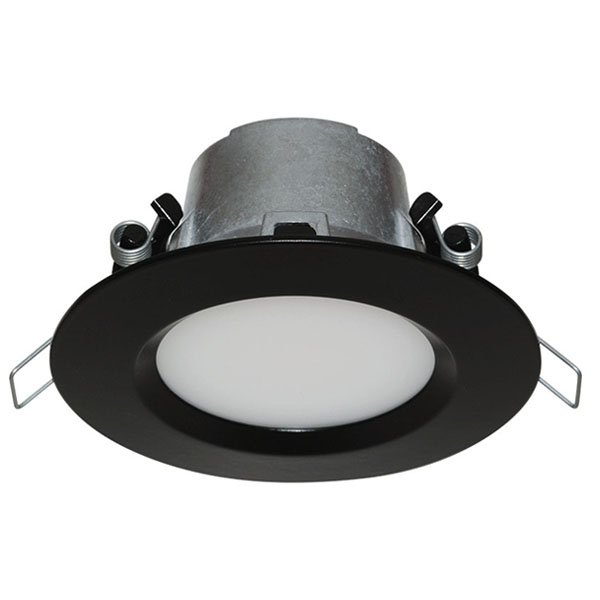

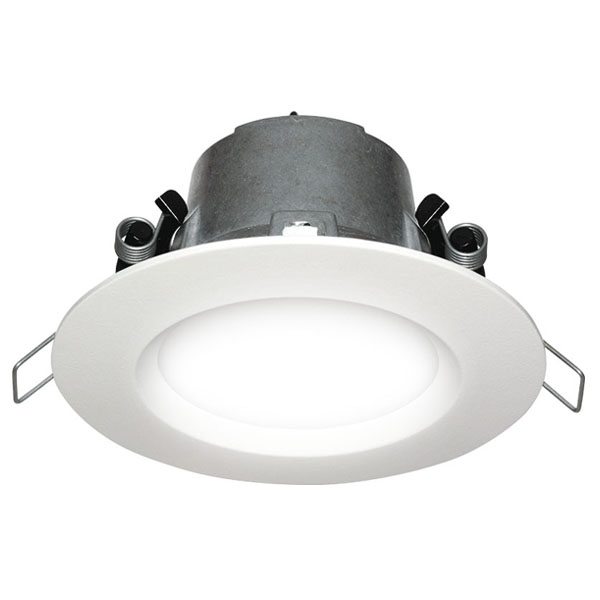

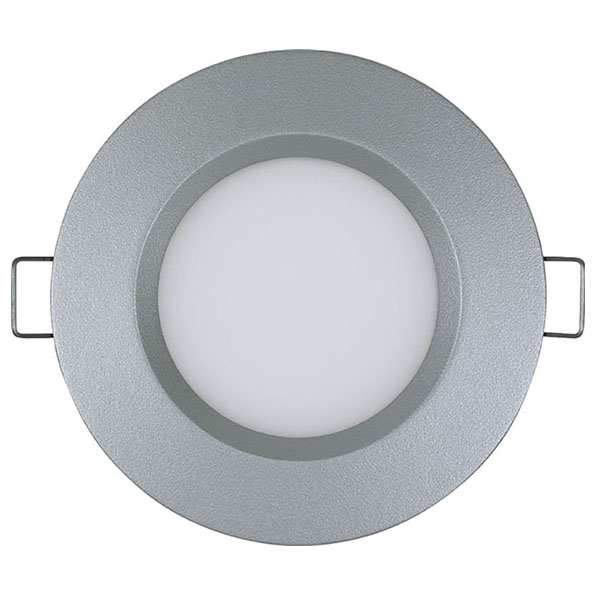

These wide-angled general-purpose E-LIGHTZ mini downlights are
designed to replace the 75W (E-LIGHTZ mini) and 60W (E-LIGHTZ mini
low power) incandescent lightbulbs. Sharing the same trim profi le as
the D-LIGHTZ series, they are ideal for general illumination in hallways,
bathrooms and bedrooms. Its IC-F classifi cation, fully sealed and zero
clearance to building elements, means this light will not compromise the
thermal performance of any home. E-Lightz provide a high quality light in
Professional Series (90+CRI) and now in Sunset Dimming or fi xed colour
temperatures the atmosphere of any room is enhanced.
insulation coverable
[image type=”thumbnail” src=”/wp-content/uploads/2018/05/Insulation-Drawing-2.jpg” alt=”Text”]
- INSULATION SAFE
- Insulation safely wraps over luminaire and driver – tested and approved.
- NO HEAT LOSS
- Sealed design stops chimney effect causing heat loss from the room – plus stops insects entering from the ceiling.
- SCB & HCB = 0
- Can be used in any room in any position.
- Can abut normally fl ammable building elements.
- DIMMABLE DRIVERStandard dimming with earth terminal and surge protection MOV.
COMPATIBLE WITH:- Clipsal 32E450TM, 32E450UDM, 32E2PUDM, 32ELEDM
- PDL 624M, 634LM, 654M, 654PBM, 824M, 854M, 354RDMLED-VW, 354PBDMUN-VW
- Legrand/HPM, EM400TR
- Legrand EM400A3P
- Kiwi Dimmer: K005U
- Home DL Dimmer: HLDIM-ECL

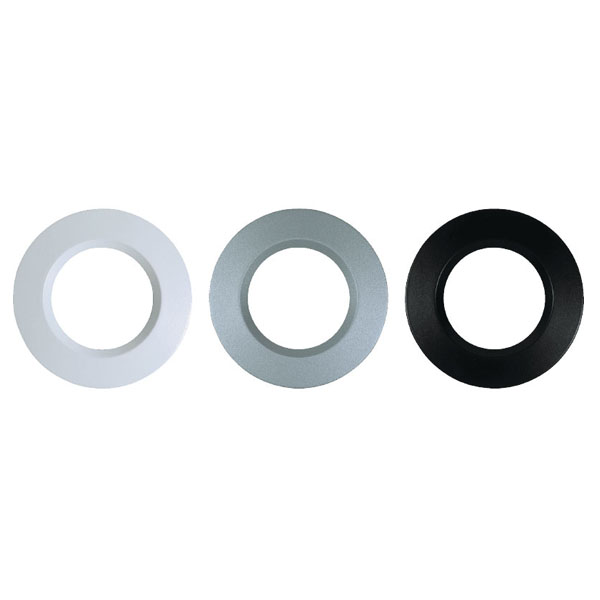

adapter plates (option)
to retrofit an oversized old style recessed luminaire.
130m diameter (100-115mm diameter hole)
SLSUP-100-130-B (black)
SLSUP-100-130-S (silver)
SLSUP-100-130-W (white)
155m diameter (100-140mm diameter hole)
SLSUP-100-155-B (black)
SLSUP-100-155-S (silver)
SLSUP-100-155-W (white)
dimensions
[image style=”margin:0;” type=”thumbnail” src=”/wp-content/uploads/2018/05/E-LIGHTZ-Mini-Downlight-Dimension.jpg” alt=”E-LIGHTZ-Downlight-Dimension”]
