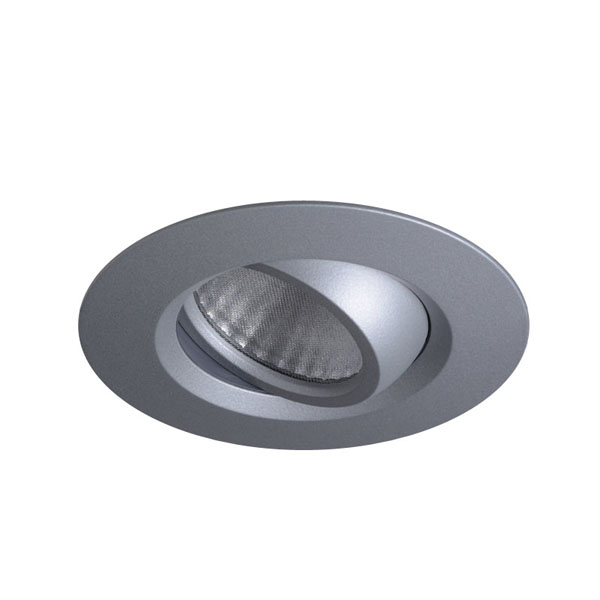

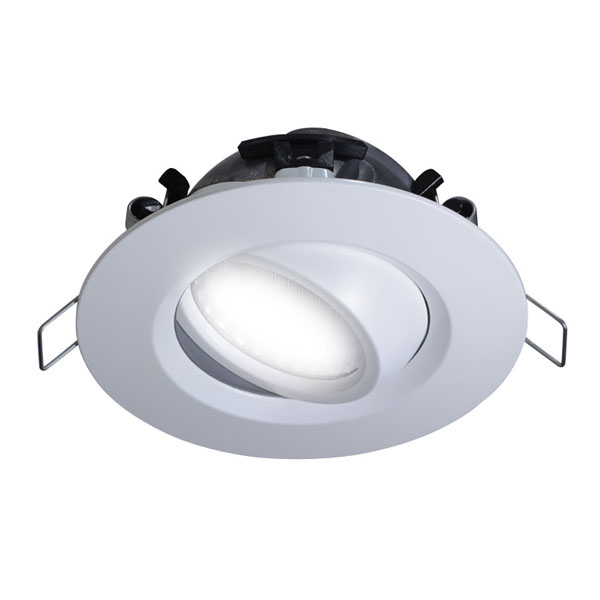

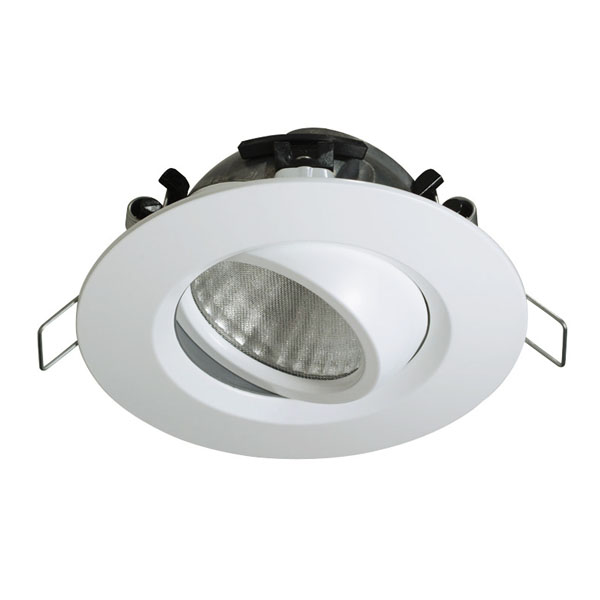

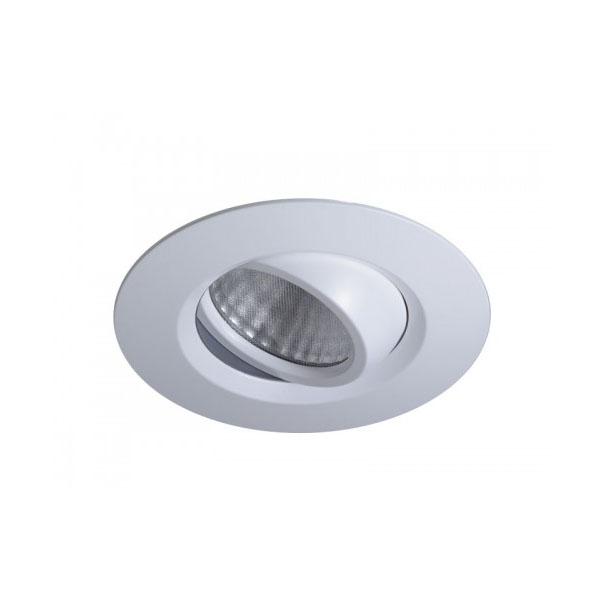

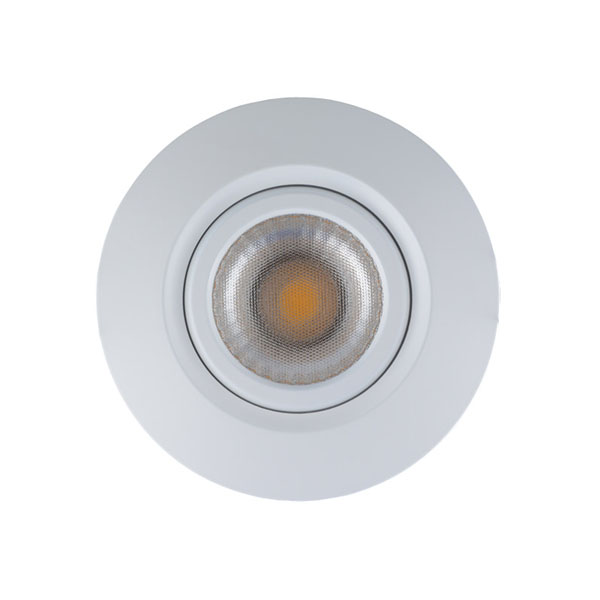

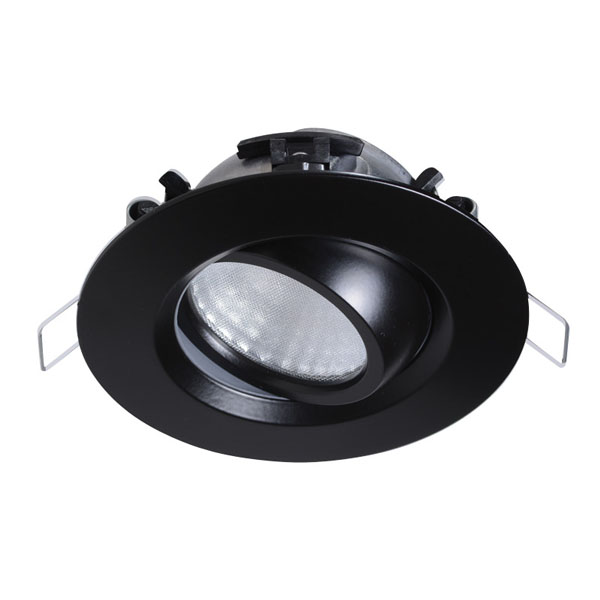

Description

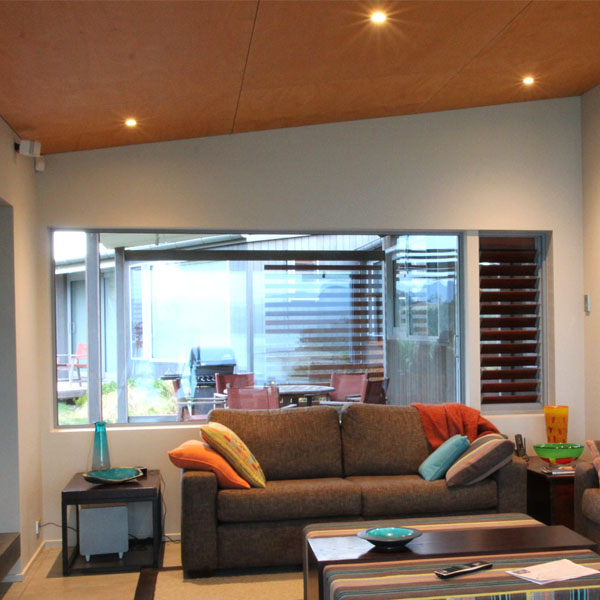

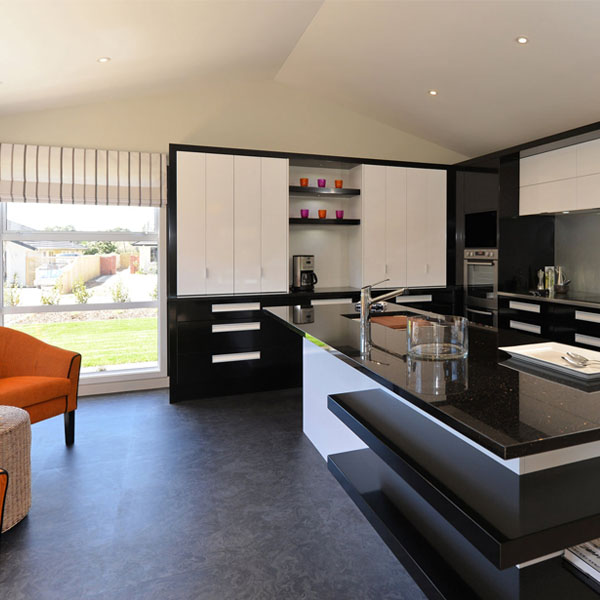

This is the ideal light for recessing into sloped ceilings, high-lighting
artwork and other general lighting applications. The D-LIGHTZ TILT won
an Award of Commendation from IES Aus/NZ, for its patent-approved,
clever thermal dissipation technique. It’s the only true IC-F, IP65, Zerorated
tilt light currently available and its IC-F classifi cation and Zero
rating means it can be used anywhere without compromising the thermal
performance of your building. Available in a wide range of options:
Professional Series (90+CRI) and Art Series (97CRI); in lumen outputs from
470Lm to over 1000Lm; in Sunset Dimming and fi xed colour temperatures;
and with Ultra Low Glare or Prismatic diffused lighting.

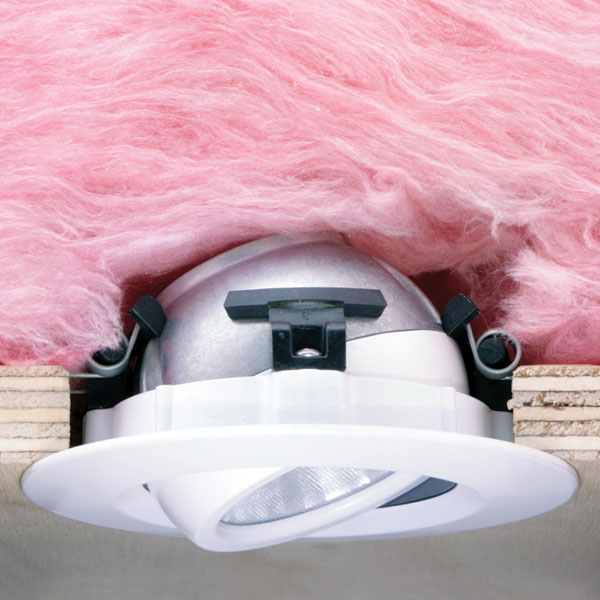

insulation coverable
[image type=”thumbnail” src=”/wp-content/uploads/2018/05/Insulation-Drawing-1.jpg” alt=”Text”]
- INSULATION SAFE
- Insulation safely wraps over luminaire and driver – tested and approved.
- NO HEAT LOSS
- Insulation safely wraps over luminaire and driver – tested and approved.
- SCB & HCB = 0
- Insulation safely wraps over luminaire and driver – tested and approved.
- DIMMABLE DRIVERStandard dimming with earth terminal and surge protection MOV COMPATIBLE WITH:
- Clipsal 32E450TM, 32E450UDM, 32E2PUDM, 32ELEDM
- PDL 624M, 634LM, 654M, 654PBM, 824M, 854M, 354RDMLED-VW, 354PBDMUN-VW
- Legrand/HPM, EM400TR
- Legrand EM400A3P
- Kiwi Dimmer: K005U
- Home DL Dimmer: HLDIM-ECL
adapter plates (option)
to retrofi t an oversized old style recessed luminaire.
130m diameter (100-115mm diameter hole)
SLSUP-100-130-B (black)
SLSUP-100-130-S (silver)
SLSUP-100-130-W (white)
155m diameter (100-140mm diameter hole)
SLSUP-100-155-B (black)
SLSUP-100-155-S (silver)
SLSUP-100-155-W (white)
dimensions
[image style=”margin:0;” type=”thumbnail” src=”/wp-content/uploads/2018/05/D-LIGHTZ-Tilt-Downlight-Dimension.jpg” alt=”Text”]
